SELECT A PRODUCT
{{ product.label }}
- 4 stock colours, bespoke RAL upgrades available
- Huge range of configs available
- Perfect for achieving larger glass areas
- 4 stock colours, bespoke RAL upgrades available
Width: {{overall_width}}mm Height: {{overall_height}}mm
Measurements not specified
Please note that your selection has NO EXTERNAL ACCESS
Reynaers CF68
Bi-Folding
Door Designer
WOULD YOU LIKE YOUR BI FOLD DOOR PROFESSIONALLY INSTALLED?
Select if you want your Bi Fold installed below.
Delivery only
- Nationwide free delivery
- 10 year product guarantee
Installation
- Nationwide survey & installation
- 10 year product guarantee
- 5 year installation guarantee
What is the size of the opening for your door?
(we just need some approx sizes to show you what is available,
exact sizes will be taken at survey)
Delivery is within 3 weeks for single colours
and 6 weeks for dual colours.
LETS GET YOUR DOOR DESIGNED!
We just need some rough measurements from you so that we can give you an accurate price instantly.
Don’t worry about being completely accurate, all we need is the size of your brick to brick opening.
Grab your tape measure and measure the width brick to brick, and then do the same for the height, maturing from the floor to the underside of the top brick - that's it!
The sizes entered here should be the overall brick to brick size minus a tolerance, which depends on your overall width. CLICK here and follow the deductions for aluminium based on your overall width.

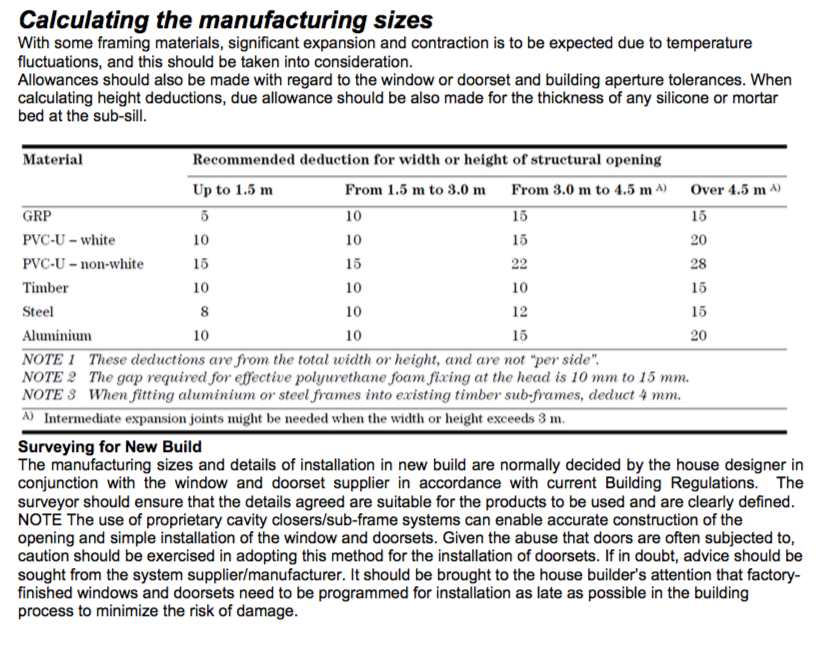

Calculating your sizes
Delivery Method Information
Please note any items larger than four panes will be made in flat pack form as standard. There is no extra charge for our flat pack option.

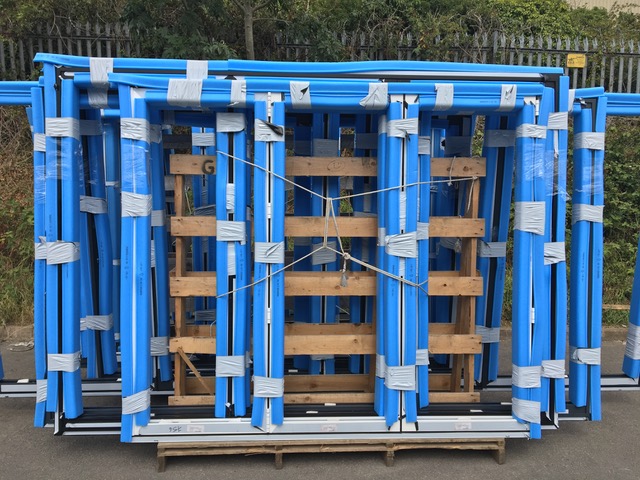

Assembled
The outer frame in one piece pre-fitted with sashes.

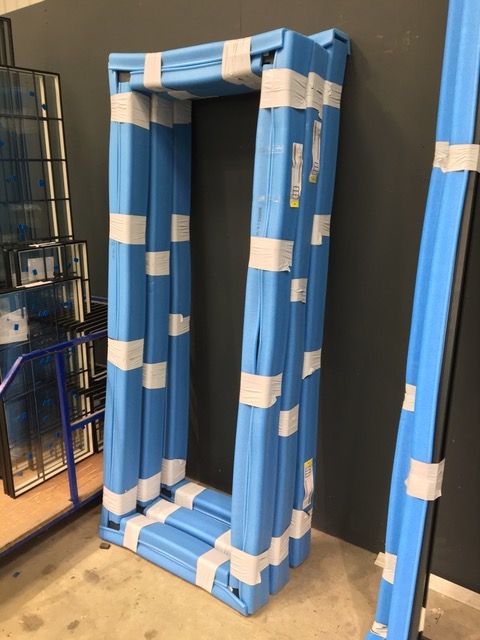

Flat pack
Flat Pack is perfect for installations with access issues, this will be Assembled then un-assembled for easy transport.
Choose a Premium Ral Colour
If you know the ral colour number you require, enter the value in the box below or alternatively select a premium colour from the list below
Selecting a Premium Ral will extend the lead time to 8 weeks and will include a Ral surcharge.
Choose a Ral Colour (Internal)
If you know the ral colour number you require, enter the value in the box below or alternatively select a colour from the list below
Selecting a Premium Ral will extend the lead time to 8 weeks and will include a Ral surcharge.
Part Q Information
Please note by upgrading to Part Q complaint the doors will also be Secured by Design & PAS24 accredited.
Part Q will upgrade the following options:
Glass will be laminated
Upgraded locks & hardware

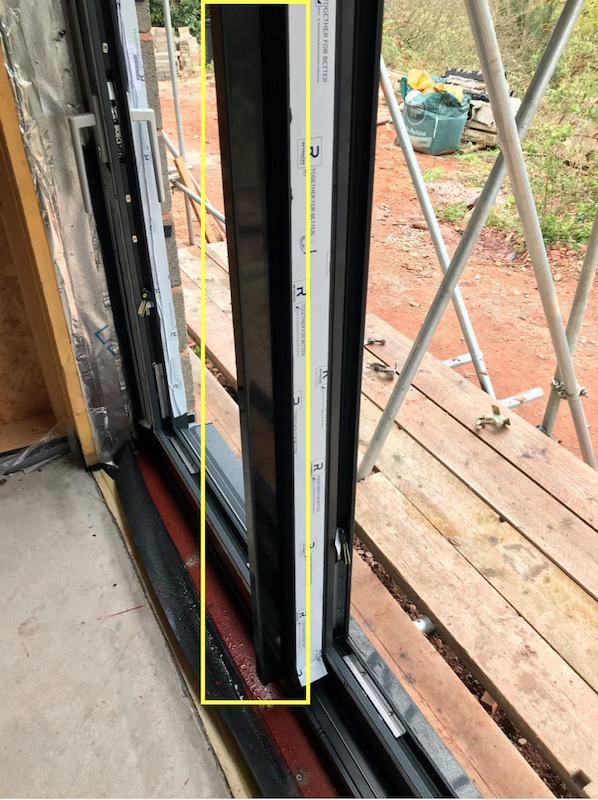

Pictures below is a reinforcing bar required for PAS24 certification. These may also be required depending on the wind load requirements.
- 28mm Glass
- U-value 1.8
- A rated glass
- Argon Gas
- Superspacer
Our standard glass option that satisfies most regular applications.
All Reynaers products when used in conjunction with the glass specifications above satisfy current Building Regulations Part L for refurbishment and new-build applications.
- 36mm Glass
- U-value 1.1
- A rated glass
- Argon Gas
- Superspacer
Triple glazing option that offers improved energy performance and acoustic properties.
All Reynaers products when used in conjunction with the glass specifications above satisfy current Building Regulations Part L for refurbishment and new-build applications.
- 28mm Glass
- U-value 1.8
- A rated glass
- Argon Gas
- Superspacer
High security glass that prevents breakage - suitable for doors in vulnerable areas or doors that need to achieve Part Q or Secured by Design.
All Reynaers products when used in conjunction with the glass specifications above satisfy current Building Regulations Part L for refurbishment and new-build applications.
- 28mm Glass
- U-value 1.8
- A rated glass
- Argon Gas
- Superspacer
Integral blinds within the glass unit that are operated by a discreet magnetic slider along the glass edge.
All Reynaers products when used in conjunction with the glass specifications above satisfy current Building Regulations Part L for refurbishment and new-build applications.
Please note units with integral blinds have a 4 week delivery time, and will arrive on a separate delivery to the door(s).
Blind options are available on the next step.
Click here for more information. Please note that all blinds are ordered directly from the industry leading UK manufacturer in order to pass on the best price possible.
As a result all blinds will have a 4 week delivery time and will arrive on a separate delivery.
Cordless Blinds

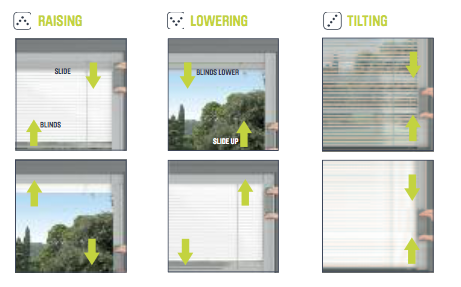

The ScreenLine® SL20SV system is a manually operated sliding Venetian blind which features a single, cleverly designed magnetic slider to control the whole operation. Positioned on a narrow slide guide on the edge of the sealed unit, the cordless magnetic slider allows the blind to be raised, lowered and tilted effortlessly.
PLEASE NOTE - SLIDE MECHANISM WILL ALWAYS BE ON RIGHT HAND SIDE (VIEWED FROM THE INSIDE).
Available in a range of 7 colours. Please note that our colour 'Anthracite' is a close match but will not exactly match RAL 7016.
Please note units with integral blinds have a 4 week delivery time, and will arrive on a separate delivery to the door(s).
Click here for more information.
Add Ons
Add-ons (sometimes referred to as frame extensions) are basically lengths of the frame profile that extend the thickness of the frame. Add-ons are mainly used to clear the internal frame of the plaster line, for example if you are fitting a door with a slim outer frame. The add-on effectively makes the frame a little thicker and stops the frame disappearing behind the plaster line on the inside.
Please consider that the internal frame size on a bi-fold is only 37mm, so if this is going to go behind your intended plaster line you will need to consider add-ons on the sides of the frame to clear this. View all technical frame sizes below.
Add-ons are also useful if you need to order a door that is slightly out of spec for your opening. For example, if you want to order a four pane door but your brick width is slightly too large, you can use an add-on to either side of the door to overcome this and avoid the extra cost of jumping to a five pane door.
Sills & Thresholds
We have a range of Sill & Thresholds to suit all requirements, we believe this is one of those jobs that can best be done by an expert. Our Expert team of surveyors will advise you on the best Sill & Threshold option for you and your home during your home survey.

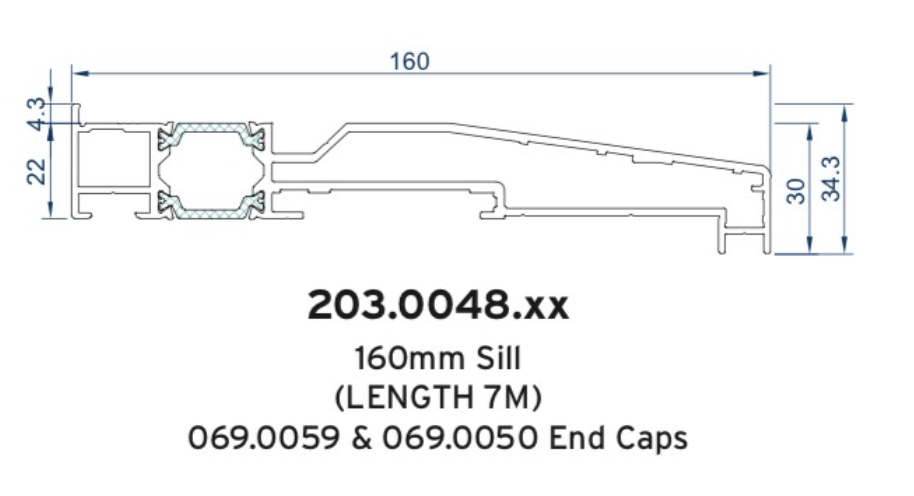

Cill Information
A sill sits underneath your door frame, and is there primarily to drain water away and stop it getting into the house! Please note the size referred to is the complete projection from the back of the bi-fold frame, not the complete projection from the front of the frame.
View the sill technical drawings below that further illustrate this.
Most doors are recommended to have a sill to help with drainage, even if a low walkthrough effect is the goal. For example, external decking or paving can be ran up to the edge of the sill.
You can click to save an image and view the high resolution version.

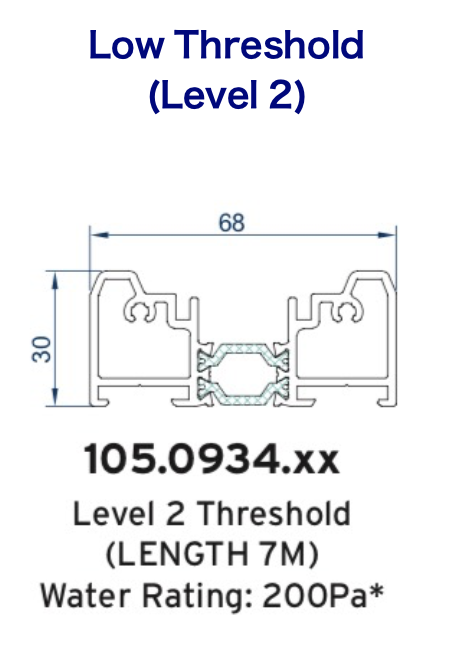

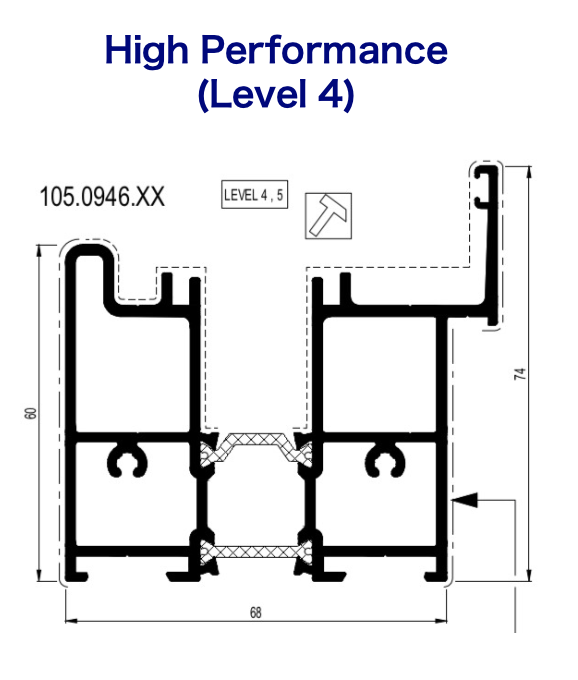

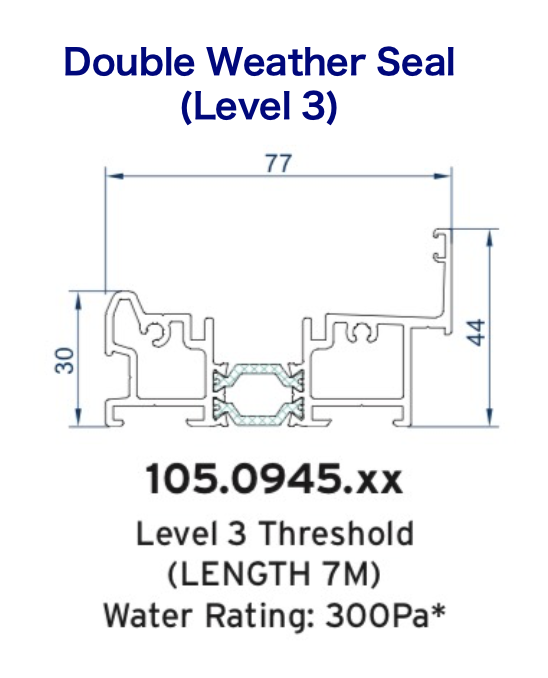

Threshold Information
Deciding which threshold and sill combination you have on your bi-folding door is perhaps the most important decision. If the wrong threshold is selected, you could have issues with floor levels and the door opening clearance. There are various thresholds to choose from, and we recommend consulting the help icon on the online designer for a detailed explanation of each. Alternatively, you can view our threshold guides below.
We find that many customers are looking to achieve a 'flush' threshold, so that the opening from the internal to external is seamless with the doors open. It should be noted that a completely flush threshold is rarely achievable, although you can get close enough in most cases.
It is also important to consider that the location of the door is relevant, and if your door is prone to receive extreme weather (high winds, heavy rainfall etc, is in an exposed location or not on the ground floor, then a higher threshold may be more suitable to provide a better weather rating.
You can click to save an image and view the high resolution version.
Width: {{overall_width}}mm Height: {{overall_height}}mm
Measurements not specified
Please note that your selection has NO EXTERNAL ACCESS
What is the size of the opening for your door?
(we just need some approx sizes to show you what is available,
exact sizes will be taken at survey)
Delivery is within 3 weeks for single colours
and 6 weeks for dual colours.
LETS GET YOUR DOOR DESIGNED!
We just need some rough measurements from you so that we can give you an accurate price instantly.
Don’t worry about being completely accurate, all we need is the size of your brick to brick opening.
Grab your tape measure and measure the width brick to brick, and then do the same for the height, maturing from the floor to the underside of the top brick - that's it!
The sizes entered here should be the overall brick to brick size minus a tolerance, which depends on your overall width. CLICK here and follow the deductions for aluminium based on your overall width.
Calculating your sizes
Delivery Method Information
Please note any items larger than four panes will be made in flat pack form as standard. There is no extra charge for our flat pack option.
Assembled
The outer frame in one piece pre-fitted with sashes.
Flat pack
Flat Pack is perfect for installations with access issues, this will be Assembled then un-assembled for easy transport.
Choose a Premium Ral Colour
If you know the ral colour number you require, enter the value in the box below or alternatively select a premium colour from the list below
Selecting a Premium Ral will extend the lead time to 8 weeks and will include a Ral surcharge.
Choose a Ral Colour (Internal)
If you know the ral colour number you require, enter the value in the box below or alternatively select a colour from the list below
Selecting a Premium Ral will extend the lead time to 8 weeks and will include a Ral surcharge.
Lift & slide handle
Part Q Information
Please note by upgrading to Part Q complaint the doors will also be Secured by Design & PAS24 accredited.
Part Q will upgrade the following options:
Glass will be laminated
Upgraded locks & hardware
- 28mm Glass
- U-value 1.8
- A rated glass
- Argon Gas
- Superspacer
Our standard glass option that satisfies most regular applications.
All Reynaers products when used in conjunction with the glass specifications above satisfy current Building Regulations Part L for refurbishment and new-build applications.
- 28mm Glass
- U-value 1.8
- A rated glass
- Argon Gas
- Superspacer
Our standard glass option that satisfies most regular applications.
All Reynaers products when used in conjunction with the glass specifications above satisfy current Building Regulations Part L for refurbishment and new-build applications.
- 36mm Glass
- U-value 1.1
- A rated glass
- Argon Gas
- Superspacer
Triple glazing option that offers improved energy performance and acoustic properties.
All Reynaers products when used in conjunction with the glass specifications above satisfy current Building Regulations Part L for refurbishment and new-build applications.
- 28mm Glass
- U-value 1.8
- A rated glass
- Argon Gas
- Superspacer
High security glass that prevents breakage - suitable for doors in vulnerable areas or doors that need to achieve Part Q or Secured by Design.
All Reynaers products when used in conjunction with the glass specifications above satisfy current Building Regulations Part L for refurbishment and new-build applications.
- 28mm Glass
- U-value 1.8
- A rated glass
- Argon Gas
- Superspacer
Integral blinds within the glass unit that are operated by a discreet magnetic slider along the glass edge.
All Reynaers products when used in conjunction with the glass specifications above satisfy current Building Regulations Part L for refurbishment and new-build applications.
Please note units with integral blinds have a 4 week delivery time, and will arrive on a separate delivery to the door(s).
Blind options are available on the next step.
Cill Information
A sill sits underneath your door frame, and is there primarily to drain water away and stop it getting into the house! Please note the size referred to is the complete projection from the back of the bi-fold frame, not the complete projection from the front of the frame.

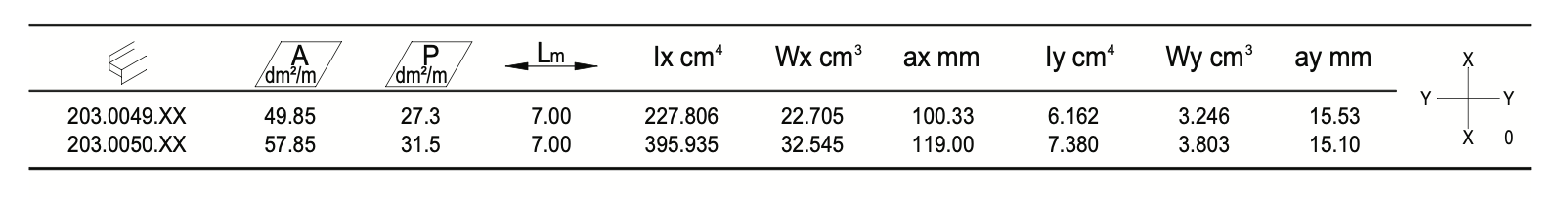

View the sill technical drawings below that further illustrate this.
Most doors are recommended to have a sill to help with drainage, even if a low walkthrough effect is the goal. For example, external decking or paving can be ran up to the edge of the sill.
You can click to save an image and view the high resolution version.

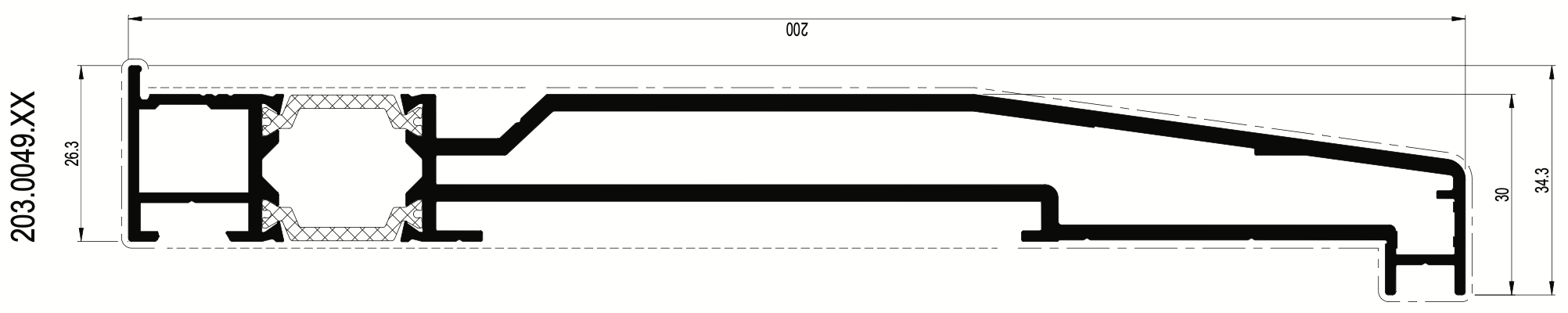

200mm sill

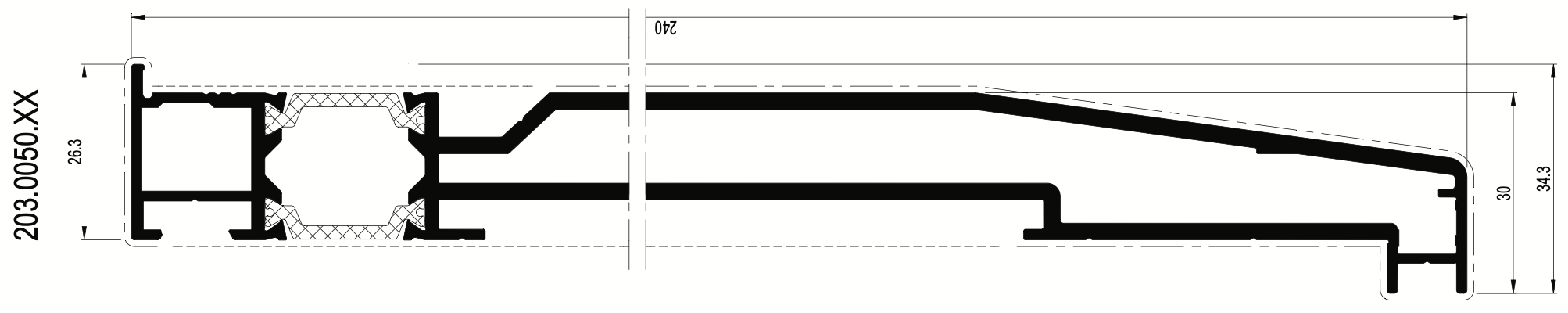

240mm sill

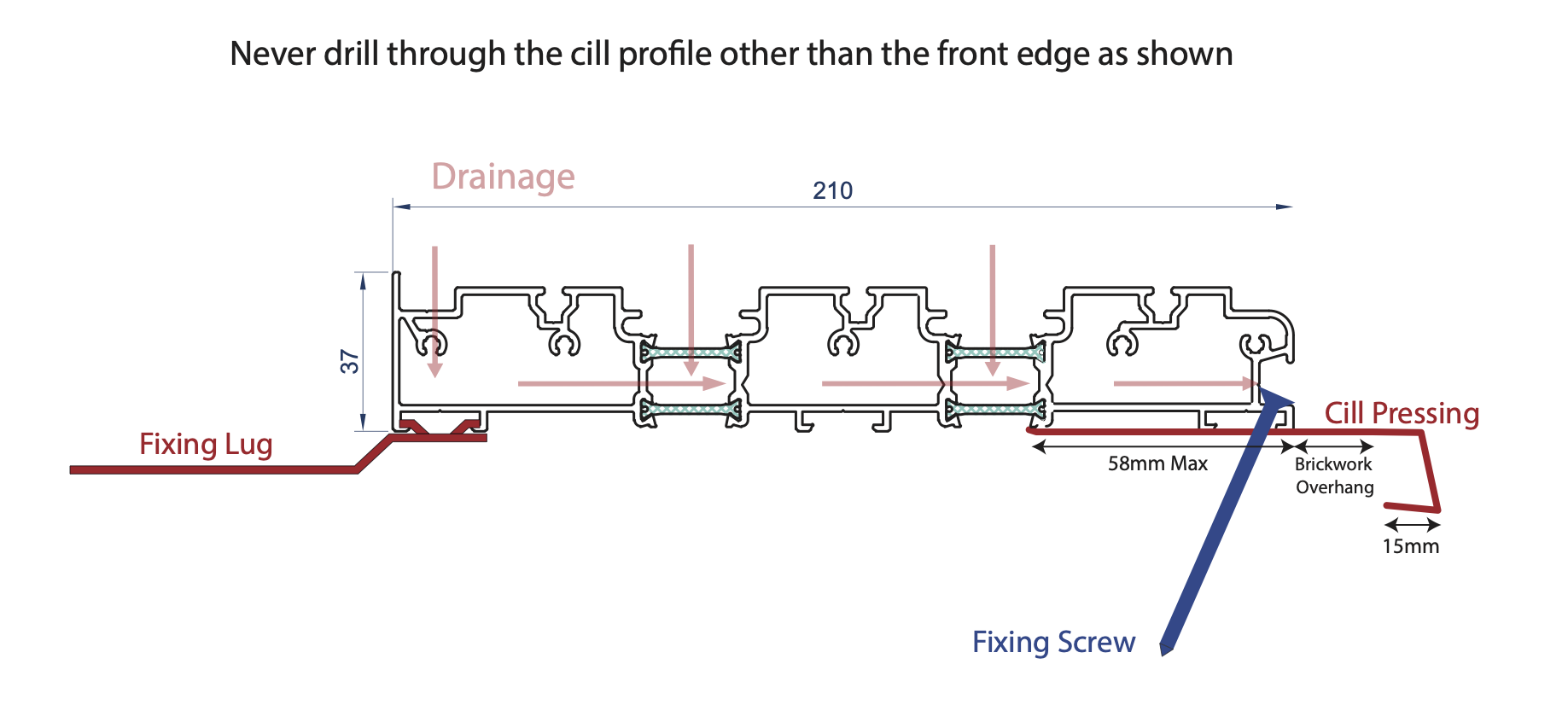

Pressed Cill Information
Due to the depth and nature of a triple track patio, Reynaers do not recommend these are fitted onto a sill. Instead, we offer a sill pressing option, which is a 2mm aluminium pressing that is shaped like a traditional sill (see image).
The pressing is recommended as it still allows you to have adequate water drainage outside. Bear in mind as the pressing is only 2mm high the floor level height must be considered in relation to the internal upstand of the patio track (37mm).
Please also remember that a triple track patio has a very wide frame depth at 210mm, so ensure you have an adequate aperture width to accommodate this.
You can click to save an image and view the high resolution version.
Triple Track With Cill
Sills & Thresholds
We have a range of Sill & Thresholds to suit all requirements, we believe this is one of those jobs that can best be done by an expert. Our Expert team of surveyors will advise you on the best Sill & Threshold option for you and your home during your home survey.
